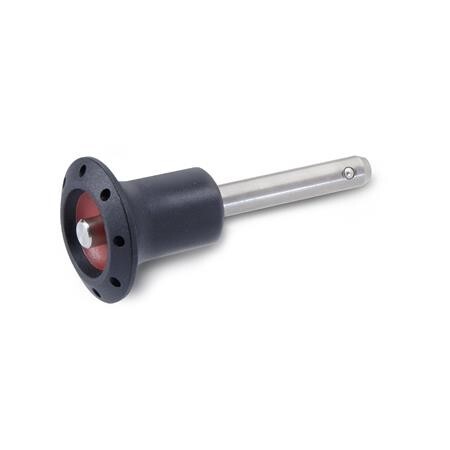

Ball lock pin with knob

Ball lock pins GN 113.5 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again. By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again. The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
