Ratchet ring spanner, angled
SW 19 mm L=268.3 mm Hazet 606-19Item-no.: 1376784Supplier number: 606-19EAN: 4000896101054
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
· Operation of screw connections in areas with restricted access, ratchet function enables continuous working · Long, slim design · Shank with sturdy HAZET double-T-profile · Box-end wrench with reversible ratchet · Fine-tooth, 72 teeth ∙ Operating angle 5° - Wrench size 8 and 9 mm: 60 teeth ∙ Operating angle 6° · Box-end side 13° offset · Head set at: 15° · Surface: chrome-plated · Output: Outside 12-point traction profile · Wrench size: 19 mm · Dimensions / length: 268.3 mm · Net weight: 0.24 kg.
Attributes
Actuation angle
5 °
Dimensions
268.3 mm

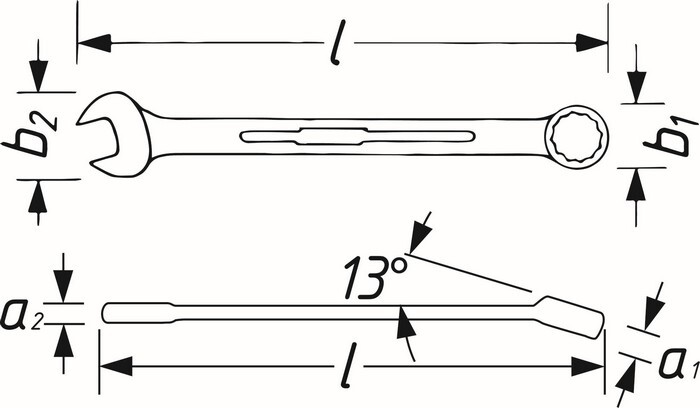

Head thickness (a1)
11.5 mm
Head thickness (a2)
9.1 mm
Head width (b1)
34.1 mm
Head width (b2)
39.7 mm
Jaw position
15 °
Length (battery)
268.3 mm
Material
Chrome vanadium
Net weight (kg)
0.24 kg
Number of teeth
72 Teeth
Output
Exterior double hexagonal traction profile
Series
auya_606
Surface
chrome-plated
Teeth
72
Version
switchable, ring side 13 °
Wrench width
19 mm
Wrench width (s1)
19 mm
Wrench width s1xs2
19
