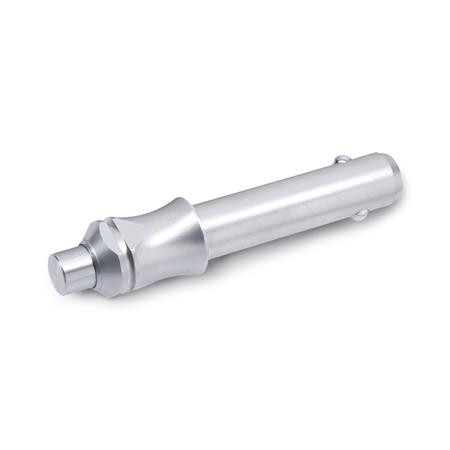

Ball lock pin
GN 113.3-6-60 Self-locking, with recessed gripNI - Stainless steel
Item-no.: 1393456Supplier number: 113.3-6-60EAN: 4045525487239
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Ball lock pins GN 113.3 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again. By pressing the spring loaded push button both balls are unlocked and by releasing it the balls are locked again. Ball lock pins GN 113.3 are renowned for their compactness. The eye ring is enclosed unmounted. The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
Attributes
Bolt diameter d1
6
Clamping length l1
60
L2
7
Material
NI - Stainless steel
Mounting hole
6
RoHS
Ja
Weight
0.021 kg
d2
7
d3
10
l3
22
