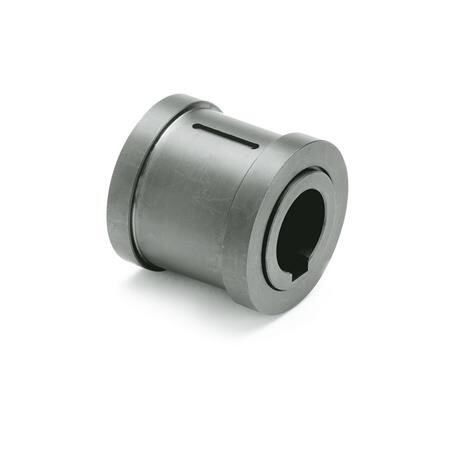

Koppelingsset
GN 000.4-1-K12ST - Staal
Art.-Nr.: 1186777Leveranciersnummer: 000.4-1-K12EAN: 4045525000179
Aantal:
1 Instellen
=
1 stukPakketgeschikt
Artikel in 6 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
The PTFE coated surfaces of the coupling attachments GN 000.4 provide minimal friction between bearing surfaces even when lubrication is being neglected. An oil hole is provided which in the completely assembled safety handwheel connects with the handwheel hub. The coupling attachment is axially secured in the handwheel hub by a clamp nut.
Specificaties
Boring d2
K 12
Gewicht
0.081 kg
L1
28.5
Maat nr.
1
Materiaal
ST - Staal
Nenngröße
1
RoHS
Ja
d3
28
d4 max.
17
d4max.
17
d5 Mindest-Ø der Radnabe
29
d5Mindest-Ø der Radnabe
29
d6 Aufnahmebohrung der Radnabe H7
25
l3
5
t
26
w min.
4
