Push-in L-fitting swivelling M5 a.
Hose Ø 4 ES 1.4404Item-no.: 1373541Supplier number: 843.005-4 EScustoms tariff number: 73072910EAN: 4047322493314
Quantity:
1 PiecePackable
Item available in 17 variants:
Price and stock visible after login
Description
Push-in L-fitting, rotating, M5 o., for hose exterior Ø 4 mm, Working pressure -0.98 - 20 bar, Stainless steel 1.4404. For use in more aggressive environments and corrosive media. The suitability test for the individual application is the user's responsibility.
Attributes
For outer hose Ø
4 mm

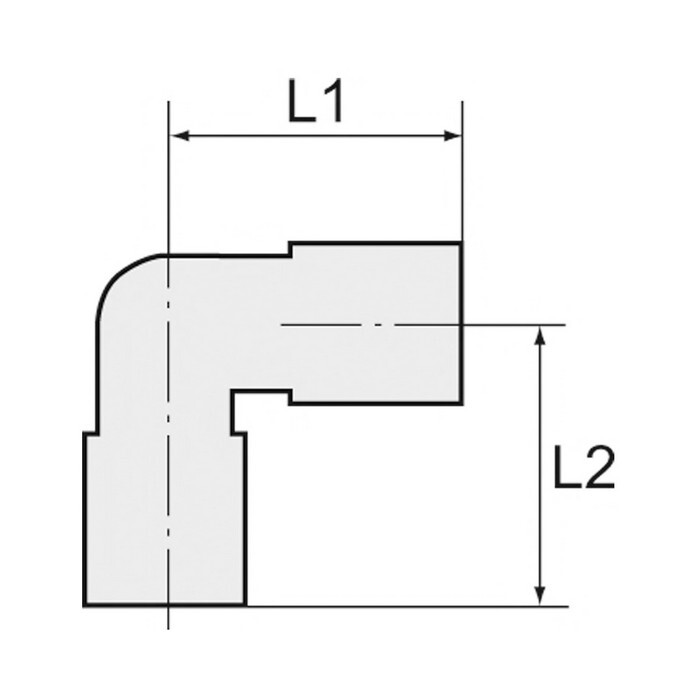

L1
20,3 mm
L2
24,0 mm
Material
Stainless steel 1.4404
Medium
Compressed air, corrosive media (if compatible with material)
Medium temperature max.
150 °C
Medium temperature min.
-20 °C
Operating temperature max.
150 °C
Operating temperature min.
-20 °C
Riegler article number
135123
SW
11 mm
Screw thread
M5
Sealing material
FPM
Series
inox line
Suitable pipe material
PVDF, PTFE, PA, PU
Thread standard
DIN 13-1
Working pressure max.
20 bar
Working pressure min.
-0,98 bar
Working pressure pulsating
10 bar
