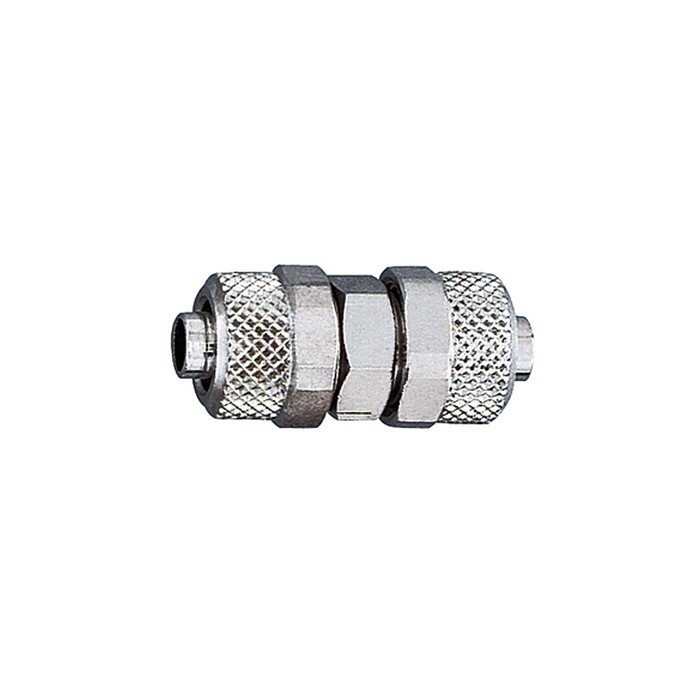

Straight connector
SD4/2 Nickel-plated brassItem-no.: 1180505Supplier number: 11.300-4customs tariff number: 74122000EAN: 4047322014236
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Straight connector, for hose 4/2 mm, AF 10, Working pressure max. 18 bar, nickel-plated brass.
Attributes
For hose
4/2 mm
L1
41,0 mm
Material
Nickel-plated brass
O-ring
without
Operating temperature max.
300 °C
Operating temperature min.
-20 °C
Riegler article number
110517
SW
10 mm
Working pressure max.
18 bar
für Schlauch-Außen-Ø
4 mm
