Lug adjustable foot
GN 45-50-M8-40-D0-S stainless steel AISI 316LNI - Stainless steel
Item-no.: 1395378Supplier number: 45-50-M8-40-D0-SEAN: 4045525452008
Quantity:
1 PiecePackable
Item available in 372 variants:
Price and stock visible after login
Description
Leveling feet GN 45 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feet to be used in every situation. The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber underlay protect sensitive surfaces. The leveling feet are supplied fully assembled and are not removable.

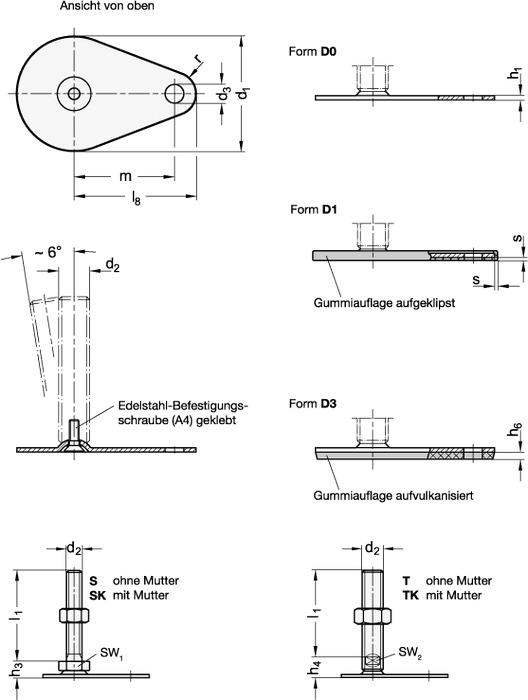

Attributes
Foot diameter d1
50
Form (foot plate)
D0 - without rubber pad
Length l1 (S/SK)
40
Material
NI - Stainless steel
R
15
RoHS
Ja
Screw thread d2
M 8
Spindle variant
S - without nut, external hexagon at the bottom
Weight
0.102 kg
d3
13
h1
2.5
h3
11
l8
60
m
45
sw1
17
