Levelling foot with mounting bracket
GN 43-50-M8-40-D0-S stainless steelNI - Stainless steel
Item-no.: 1223533Supplier number: 43-50-M8-40-D0-SEAN: 4045526018098
Quantity:
1 PiecePackable
Item available in 1148 variants:
Price and stock visible after login
Description
Leveling feet GN 43 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feat to be used in every situation. The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces. The leveling feet are supplied fully assembled and are not removable.
Attributes
Foot diameter d1
50
Form (foot plate)
D0 - without rubber pad
Length l1 (S/SK)
40
Material
NI - Stainless steel
R
15
RoHS
Ja
Screw thread d2
M 8
Spindle variant
S - without nut, external hexagon at the bottom
Statische Belastbarkeit Ausführung S / SK
8 kN
Weight
0.090 kg

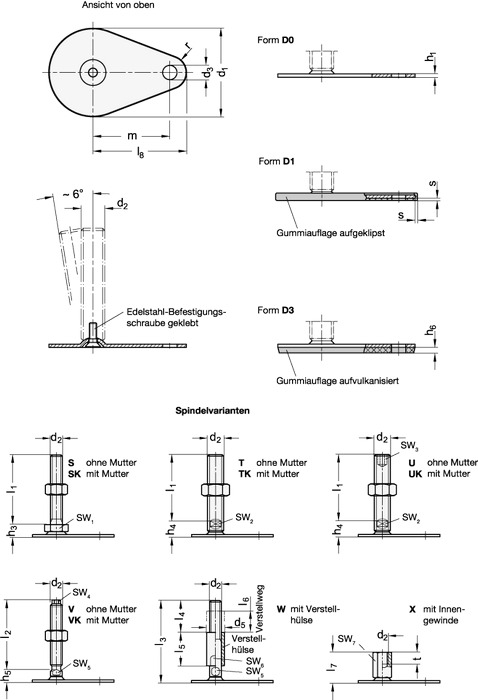

d1
50
d2
M 8
d3
13
h1
2.5
h3
11
l8
60
m
45
sw1
17
