Pneumatic hose PVC special
9x1.3 mm, with fabric insert up to 70°C-max 30 barItem-no.: 1120584Supplier number: 170/4customs tariff number: 39173900EAN: 4047322030953
PU (Roll): 50 MeterPU (Packaging): 50 MeterQuantity:
50 MeterPackable
Item available in 6 variants:
Price and stock visible after login
Description

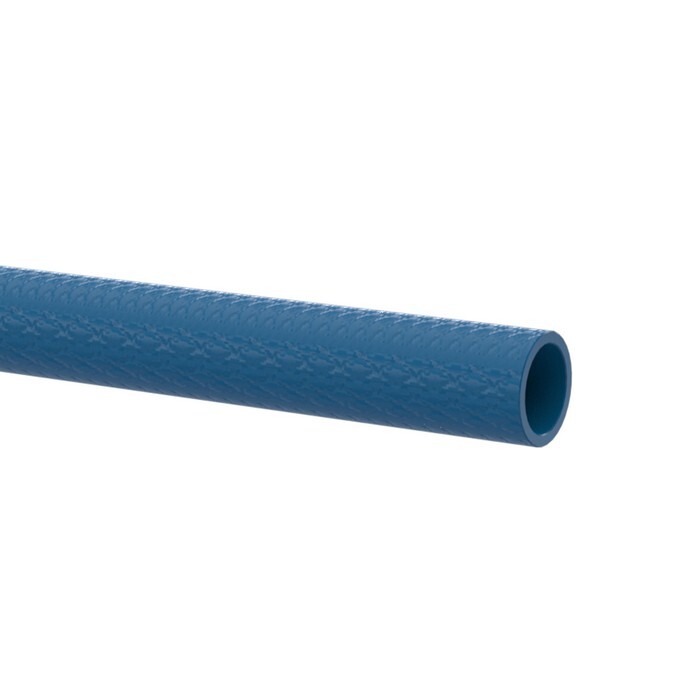

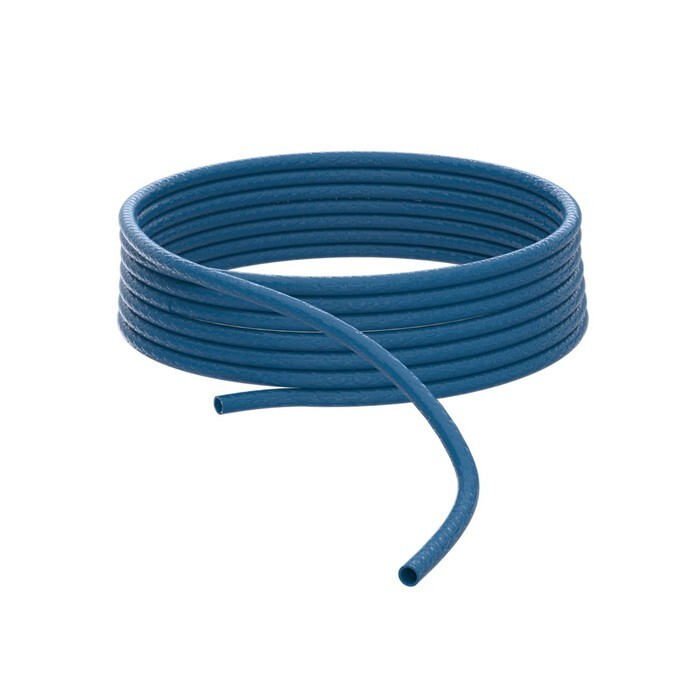

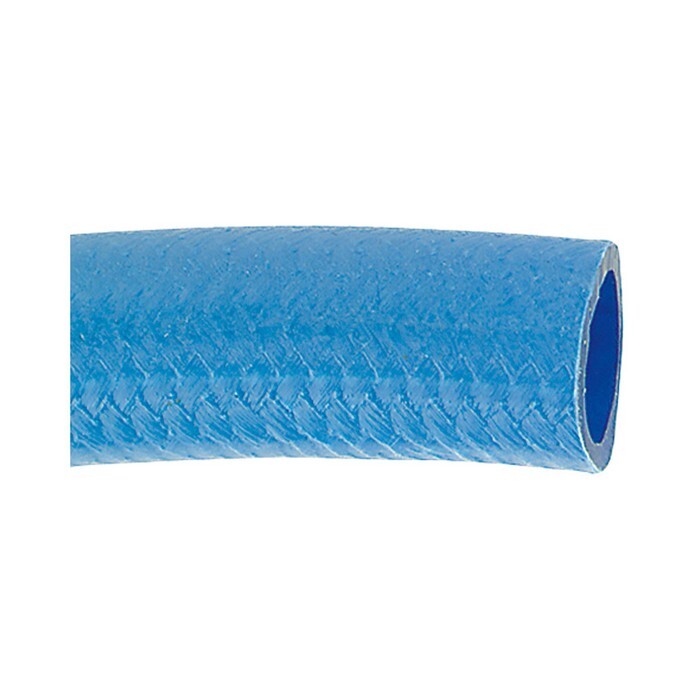

PVC special pneumatic hose, Temperature -10 °C to 60 °C, Hose Ø 11.6x9, PN at 20 °C max. 30 bar, Roll of 50 m, blue. Flexible, high-quality, PVC hose with a smooth inner layer and braiding made of special impregnated fabric, suitable for high pressures. Largely resistant to salt solutions, diluted acids and alkaline solutions, greases and mineral oils.
Attributes
Bending radius min.
70 mm
Colour
blue
Hose-Ø inside
9 mm
Hose-Ø outer
11,6 mm
Material
PVC with integrated special fabric
Max. operating pressure at 20 °C
30 bar
Riegler article number
113816
Roll length
50 m
Temperature range max.
60 °C
Temperature range min.
-10 °C
