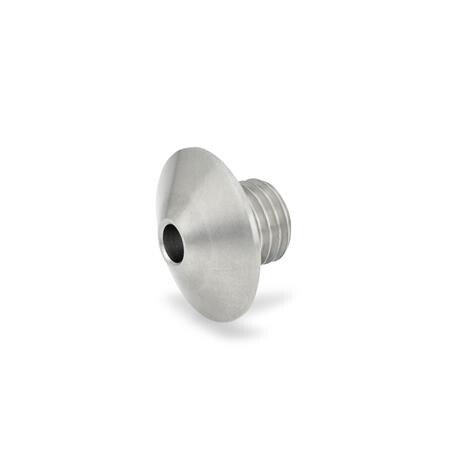

Positioning bush with starting cone
GN 412.5-M12X1,5-B4,2 stainless steelA4 - Stainless steel
Item-no.: 1348787Supplier number: 412.5-M12X1,5-B4,2EAN: 4045525425163
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Stainless steel positioning bushings with ramping cone GN 412.5 are used in connection with bolts of indexing plungers. The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.

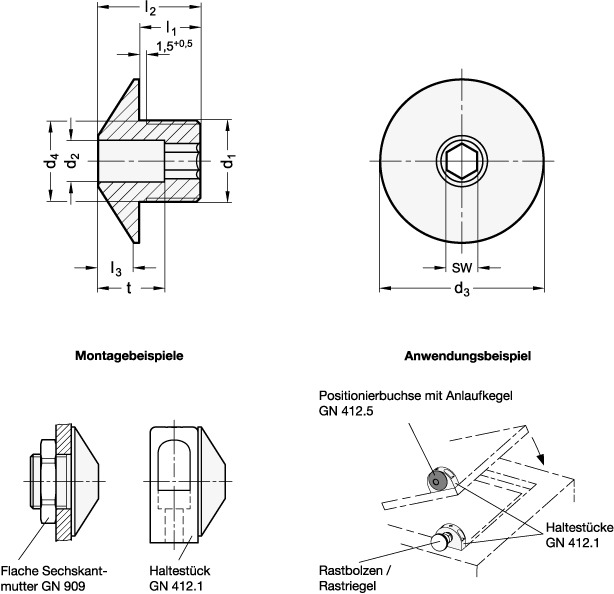

Attributes
Inner diameter d2
B 4,2
L1
10
L2
16
Material
A4 - Stainless steel
Mounting thread d1
M 12 x 1,5
RoHS
Ja
SW
4
Weight
0.016 kg
d3
24
d4
12
l3
5
t
11
