Retaining piece, black
GN 412.1-35-M8-1ZD - Zinc die casting
Item-no.: 1223055Supplier number: 412.1-35-M8-1EAN: 4045525783188
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 18 variants:
Price and stock visible after login
Description
Mounting blocks GN 412.1 are reasonably priced fitting aid for indexing plungers, cam action indexing plungers and for setting bolts and buffers. To position the indexing pin of an indexing plunger or cam action indexing plunger, they can also hold positioning bushings GN 412.2.
Attributes

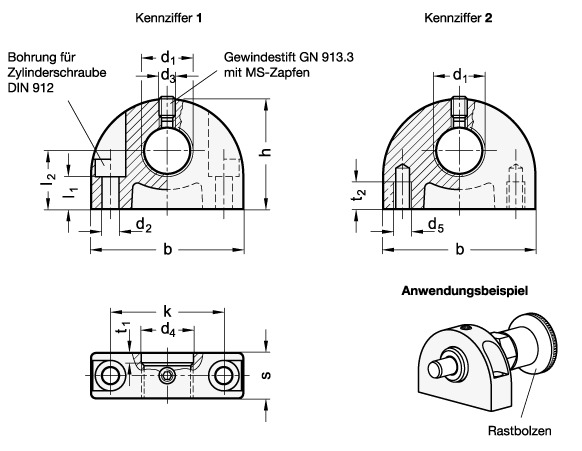

Code number
1 - Mounting from the front
L1
6
L2
14
Length B
35
Material
ZD - Zinc die casting
RoHS
Ja
Screw thread d1
M 8
Weight
0.037 kg
d2
4.3
d3
M 4
d4
8.2
h
26
k
25
s
12
t1
2
