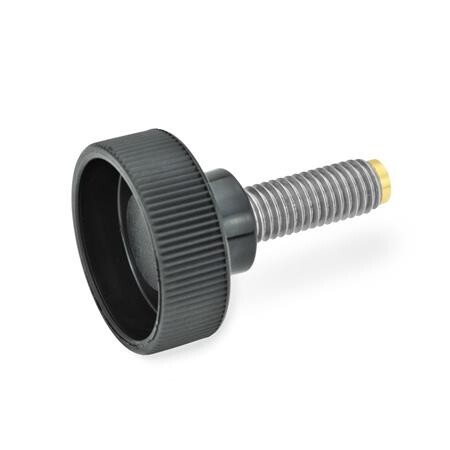

Knurled hollow screw with brass pin
GN 421.10-M5-10-MSPA - plastic
Item-no.: 1201613Supplier number: 421.10-M5-10-MSEAN: 4045525047655
Quantity:
1 PiecePackable
Item available in 36 variants:
Price and stock visible after login
Description
Knurled screws GN 421.10 with pads in brass or plastic are used in applications, where marks and damage on the workpiece are unacceptable.
Attributes
KU spigot
1
RoHS
Ja
Screw thread d1
M 5
Thread length l1
10
Thrust pin material
MS - Brass
Weight
0.004 kg
d2 MS trunnion
3
d2 MS trunnion
3
d3
19
d4
9
d5
12
h
14
k
8
l2 MS spigot
0.5
