Ganter

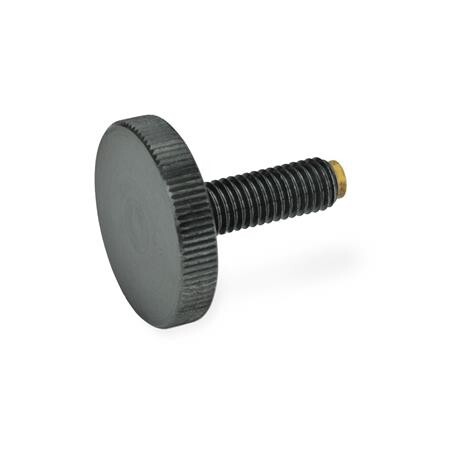

Knurled screw with brass spigot, flat

GN 653.10-M5-12-ST-MS
Item-no.: 1210787Supplier number: 653.10-M5-12-ST-MSEAN: 4045525770522
PU (Packaging): 25 PieceQuantity: ​​ 1 PiecePackable​
Item available in 56 variants:
Short-term Sourcing
Description
Flat knurled screws GN 653.10 with pivot in brass or plastic are used in applications, where marks and damages on the workpiece are unacceptable. The head dimensions comply with flat knurled thumb screws DIN 653.
Attributes
Handle diameter
20
KU spigot
1
Material
MS - Brass
Material (screw)
ST - Steel
RoHS
Ja
Screw thread d1
M 5
Thread length l1
12
Weight
0.011 kg
d2 MS trunnion
3
k
4
l2 MS spigot
0.5
