Indexing plunger

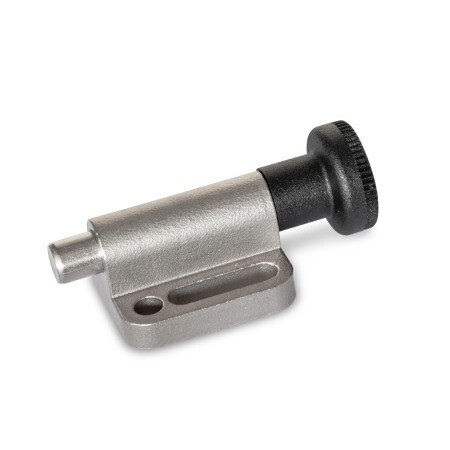

GN 417-4-B-NI with knob & flange, stainless steelNI - Stainless steel investment casting
Item-no.: 1479378Supplier number: 417-4-B-NIEAN: 4045525566842
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Indexing plungers GN 417 with flange are mounted parallel to the plungers and are characterized by an especially low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of washers makes it easier to mount the parts using the slots. Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°. A notch keeps the plunger in this position. The stainless steel versions allow the indexing plungers to be used in more aggressive environments.
Attributes
Bolt diameter d1
4
End
12
Federdruck Anfang
3 N
Federdruck in N ≈Anfang
3
Form
B - without detent lock, with knob
Form C
19
L1
4
L2
10.5
Material
NI - Stainless steel investment casting
RoHS
Ja
Weight
0.012 kg
b1
22
b2 Form B
16.5
b3
6
b4
3.3
d2
12
h1
7
h2
4
h3
10
k1
14
k2
4
k3
8
k4Form B
4.5
