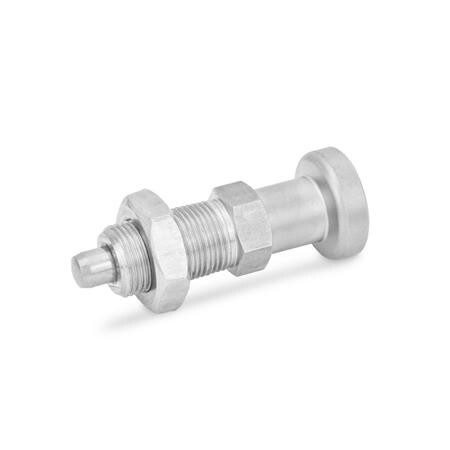

Locking bolt with knob
GN 617-10-AKN-NI stainless steelNI - Stainless steel
Item-no.: 1150476Supplier number: 617-10-AKN-NIEAN: 4045525558458
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Stainless steel indexing plungers GN 617 are designed such that the plunger set in the end position (pressure spring is "on block") can also absorb axial forces. For applications in which these forces are substantially above the tensile force applied by the operator (Type G), GN 817 indexing plungers are to be preferred.
Attributes
Bolt diameter d1
10
End
40
Federdruck Anfang
17 N
Form
AKN - with lock nut, with stainless steel knob
L1
80
L2
10
Material
NI - Stainless steel
RoHS
Ja
SW
22
Weight
0.211 kg
d2
M 20 x 1,5
d3
31
e
25.4
l3
33
l4
10
l5 Min.
30
