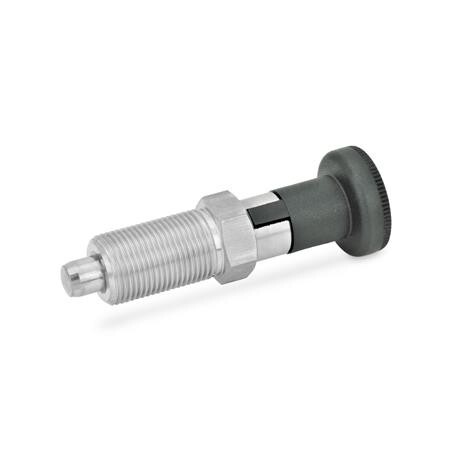

Detent bolt with detent lock
GN 617.1-5-A-NI Stainless steel, without lock nutNI - Stainless steel
Item-no.: 1208499Supplier number: 617.1-5-A-NIEAN: 4045525316683
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Indexing plungers GN 617.1 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
Attributes
Bolt diameter d1
5
End
15
Federdruck Anfang
6 N
Form
A - without lock nut
L1
51
L2
5
Material
NI - Stainless steel
RoHS
Ja
SW
12
Weight
0.022 kg
d2
M 10 x 1
d3
21
e
13.8
l3
17
l4
5
l5 Min.
15
