Locking bolt with screw-on flange
GN 612.2-6-16-A without PA capST - Steel
Item-no.: 1208057Supplier number: 612.2-6-16-AEAN: 4045525311503
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Cam action indexing plungers GN 612.2 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove keeps the plunger in this position.

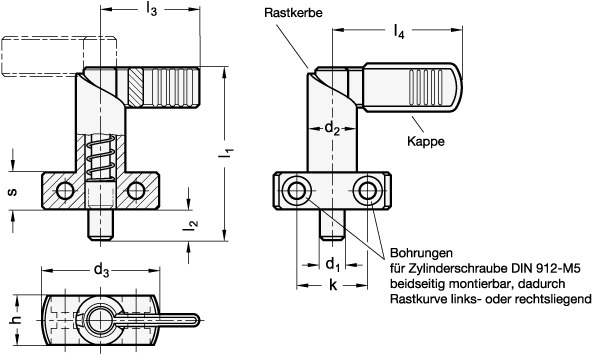

Attributes
Bolt diameter d1
6
End
32
Federdruck Anfang
12 N
Federdruck in N ≈Anfang
12
Form
A - without plastic cap
L1
56
L2
10
Material
ST - Steel
Outer diameter d2
16
RoHS
Ja
Weight
0.084 kg
d3
35
h
16
k
20
l3
32
l4
42
s
12
