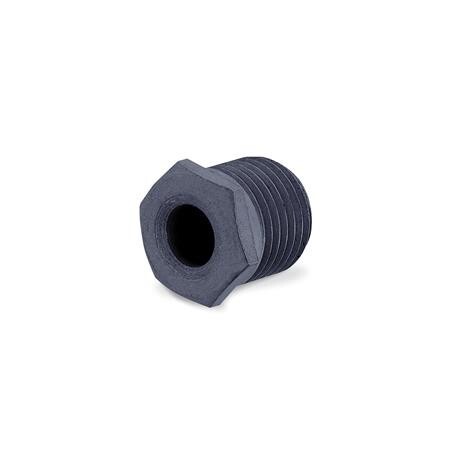

Positioning bush
GN 412.2-M12X1,5-B4,2 for locking bolts and latchesST - Steel
Item-no.: 1201542Supplier number: 412.2-M12X1,5-B4,2EAN: 4045525517455
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description

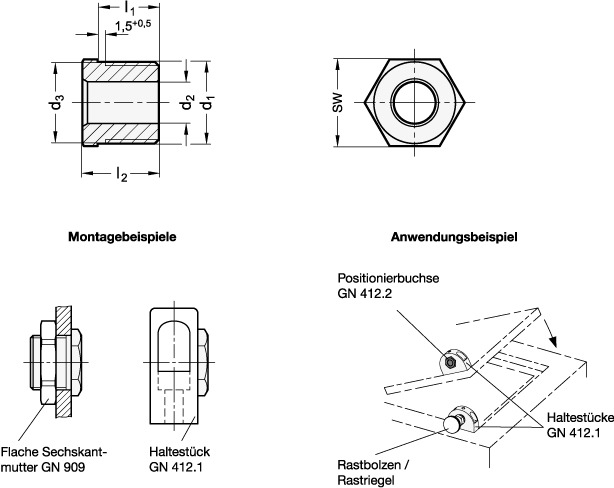

Positioning bushings GN 412.2 are used in connection with bolts of indexing plungers and cam action indexing plungers. The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.
Attributes
Inner diameter d2
B 4,2
L1
10
L2
13
Material
ST - Steel
Mounting thread d1
M 12 x 1,5
RoHS
Ja
SW
13
Weight
0.010 kg
d3
12
