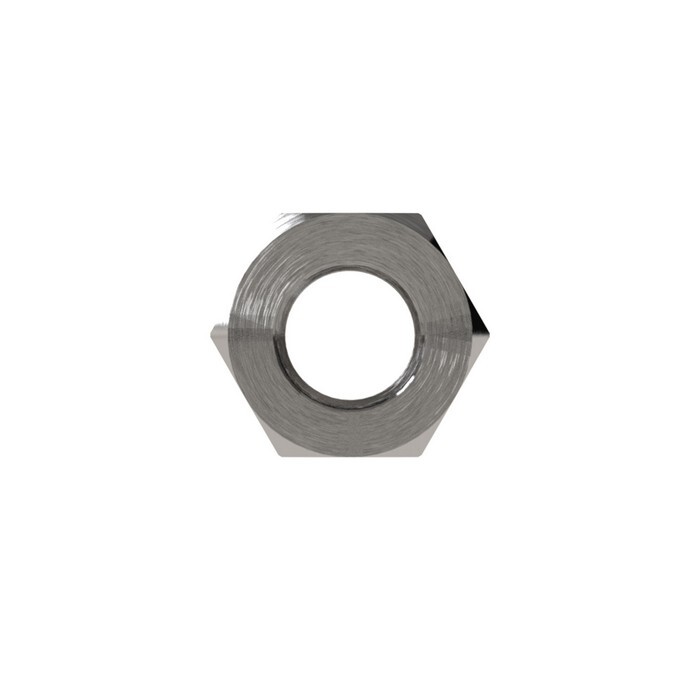

Reducing nipple, short
AG 3/8" x IG 1/8", L 13 mm stainless steelItem-no.: 1110869Supplier number: 251.06-ESEAN: 4047322063449
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Reducing nipple, short, G 3/8 o., G 1/8 i. AF 19 Stainless steel 1.4571, Max. working pressure 60 bar, Max. operating temp. 150 °C.
Attributes
External thread
G 3/8
Internal thread
G 1/8
L1
13 mm
L2
9,5 mm
Material
Stainless steel 1.4571
Operating temperature max.
150 °C
Riegler article number
111623
SW
19 mm
Working pressure max.
60 bar
