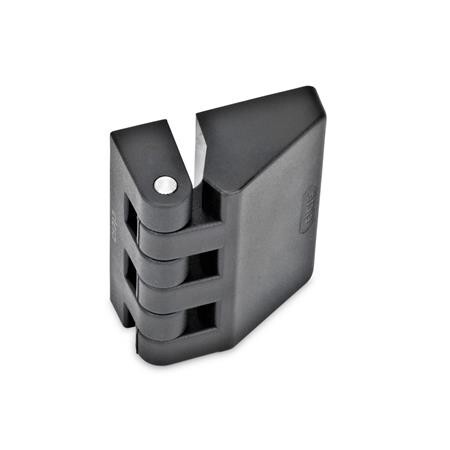

Hinge, plastic
GN 154-26-30-A Elesa 422711PA - plastic, polyamide
Item-no.: 1189545Supplier number: 154-26-30-Acustoms tariff number: 39263000EAN: 4045525059085
PU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
The hinges GN 154 consist of two different wings of unequal length. They are preferably used when thick walled doors or door profiles have to be screwed on to thin walled housings.
Attributes
Form
A - 2x2 threaded blind holes
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.008 kg
Width l1
26
Width l2
30
Width x1
26.5
Width x2
30.5
d1
M 3
d2
3.3
d3
2.5
h1
12.5
h2
9.5
h3
19
l3
22.5
l4
7
l5
15
l6
7.5
l6 ≈
7.5
l7
13
l8
4
m1
15
m2
15
t1
4
t2
4
