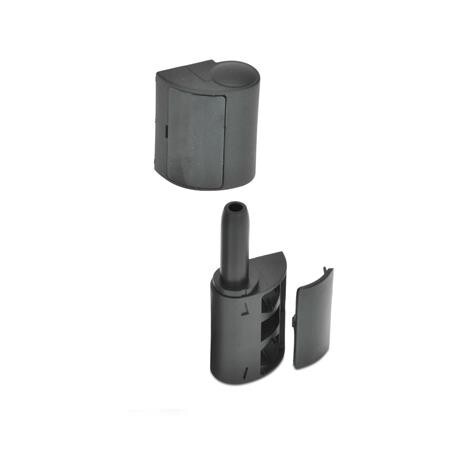

Hinge, plastic
GN 160.1-35-64 Elesa 426211-C9PA - plastic, polyamide
Item-no.: 1189613Supplier number: 160.1-35-64EAN: 4045525463318
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
On hinges GN 160.1 the two pin halves which form the fulcrum are offset from each other by 0.5 mm and therefore, eccentric. Hence the position of the door can be altered or readjusted in relation to the frame.
Attributes
A
2
Length l2
64
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.025 kg
Width l1
35
d1
5.5
d2
8
h1
16
h2
9
l3
16
l4
31
l5
6
m1
19
m2
19
s
8.5
