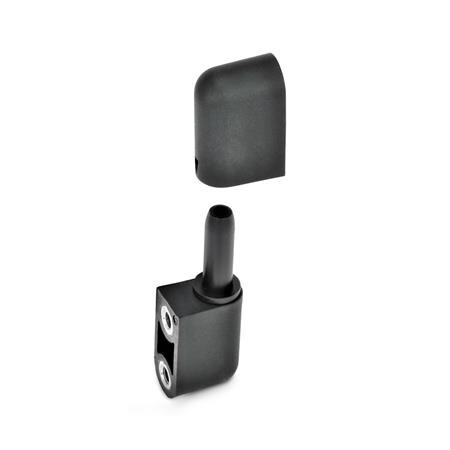

Hinge, plastic
GN 160-28-64-A Elesa 426111PA - plastic, polyamide
Item-no.: 1143956Supplier number: 160-28-64-AEAN: 4045525463271
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description
On hinges GN 160 the two pin halves which form the fulcrum are offset from each other by 0.5 mm and therefore, eccentric. Hence the position of the door can be altered or re-adjusted in relation to the frame.
Attributes
A
2
Form
A - 2x2 threaded blind holes
Length l2
64
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.024 kg
Width l1
28
b
14.5
d1
M 5
d2
8
l3
6
l4
12
m
19
t
7.5
