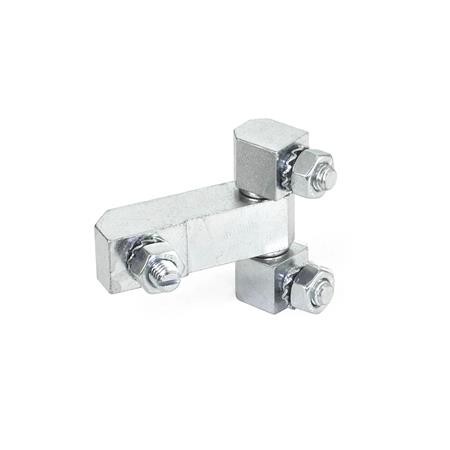

Hinge with rear fastening
GN 129.2-45-40-C-ST Galvanised steelST - Steel
Item-no.: 1219577Supplier number: 129.2-45-40-C-STEAN: 4045525925816
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Hinges GN 129.2 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged. With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.
Attributes
Form
C - Mounting from the rear
Length l1
45
Length l2
40
Material
ST - Steel
RoHS
Ja
Square
12
Weight
0.100 kg
b
13
d1
M 6
d2 Pin
6
h1
13
h2
13.5
l3
18
l4 Max.
6
l5
11
l6max.
5
l7
10
m1
30
m2
28.2
t
9
