Hinge with front attachment
GN 129.3-66-55-A-ST Galvanised steelST - Steel
Item-no.: 1219583Supplier number: 129.3-66-55-A-STEAN: 4045525925878
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Hinges GN 129.3 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged. The hinges are fastened with socket cap screws DIN 912. This allows arbitrary wall thicknesses on the housing or door to be realized with the existing thread or using through-holes.
Attributes
Form
A - Mounting from the front
Length l1
66
Length l2
55
Material
ST - Steel
RoHS
Ja
Weight
0.228 kg

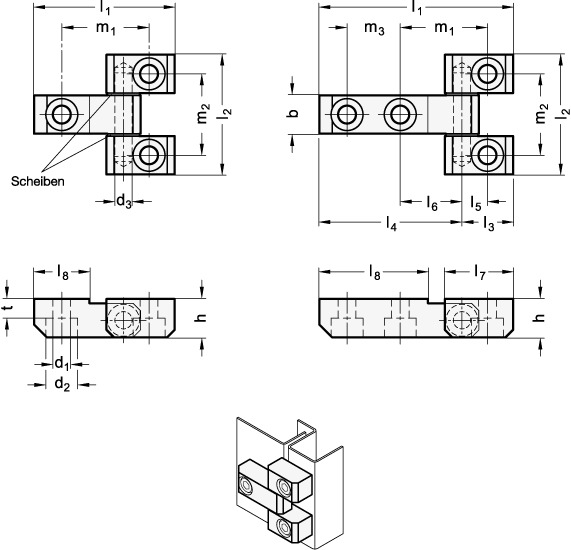

b
18
d1
8.4
d2
15
d3 Stift
8
h
18
l3
24
l4 Max.
42
l5
12
l6max.
29
l7
32
l8
26
m1
41
m2
37
t
9
