Push rod tensioner push/pull
GN 842-360-AS Forged steel bodyItem-no.: 1162812Supplier number: 842-360-AScustoms tariff number: 82057000EAN: 4045525386433
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Push-pull type toggle clamps GN 842 can be used for very high holding capacities thanks to their massive and sturdy body. On the size 70, the mounting holes are provided with cylindrical countersinks for the use of hexagon socket head screws DIN 912-M4.

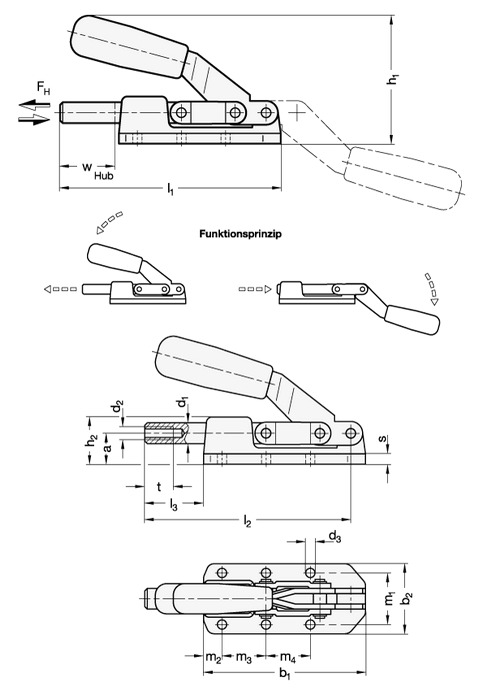

Attributes
A
25
FH Haltekraft
5600 N
FH in N holding force
5600
Form
AS - Forged base body
L1
122
L2
114
RoHS
Ja
Size
360
Weight
0.480 kg
b1
90
b2
45.5
d1
12
d2
M 8
d3
5.5
h1
75
h1 ≈
75
h2
34.5
h2 ≈
34.5
l2 ≈
114
l3
32
m1
33.5
m2
30
m3
36.5
s
7
t
15
w Stroke
32
