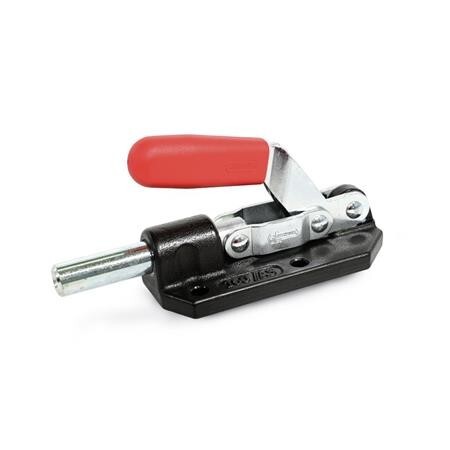

Duwstangspanner push/pull
GN 842-360-AS Lichaam van gesmeed staalArt.-Nr.: 1162812Leveranciersnummer: 842-360-ASdouanetariefnummer: 82057000EAN: 4045525386433
Aantal:
1 stukPakketgeschikt
Artikel in 10 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Push-pull type toggle clamps GN 842 can be used for very high holding capacities thanks to their massive and sturdy body. On the size 70, the mounting holes are provided with cylindrical countersinks for the use of hexagon socket head screws DIN 912-M4.
Specificaties
A
25
FH Haltekraft
5600 N
FH in N holding force
5600
Gewicht
0.480 kg
L1
122
L2
114
Maat
360
RoHS
Ja
Vorm
AS - Gesmeed basislichaam
b1
90
b2
45.5
d1
12
d2
M 8
d3
5.5
h1
75
h1 ≈
75
h2
34.5
h2 ≈
34.5
l2 ≈
114
l3
32
m1
33.5
m2
30
m3
36.5
s
7
t
15
w Slag
32
