Ganter

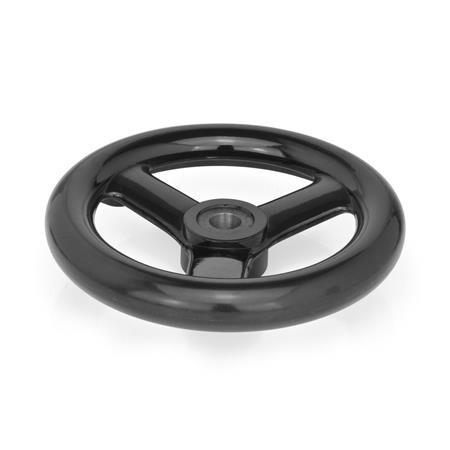

Spoked handwheel without handle

GN 555-100-B10-A PF black, Borhung
KU - Plastic
Item-no.: 1205902Supplier number: 555-100-B10-AEAN: 4045525292604

Quantity: ​​ 1 PiecePackable
Item available in 44 variants:
Short-term Sourcing

Description
Bore diameter and plane face of the steel bushing in the handwheels GN 555 are machined only after pressing and clamped at the ring, ensuring a good concentricity and plane run of the wheel rim. The accurate fitting bore with the place face perpendicular to the bore diameter is guaranteed. Handwheels GN 555 are also available without hub bore.

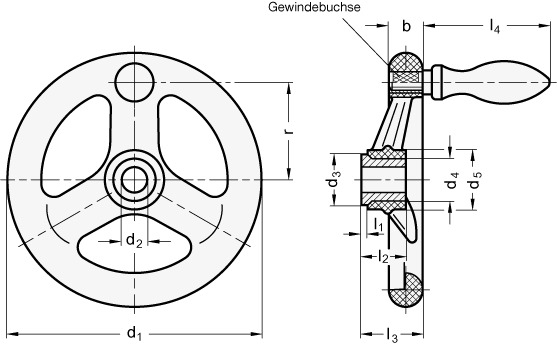

Attributes
Anzahl der Speichen
3
Ballengriff
16
Bore labelling
B - without hub groove
Borehole diameter d2
10
Form
A - without handle
Handwheel diameter d1
100
L2
23
Material
KU - Plastic
R
37
RoHS
Ja
Weight
0.123 kg
b
15
d3
25
d4
19
d5
28
l3
28
l4
54.5
