Spiral eccentric

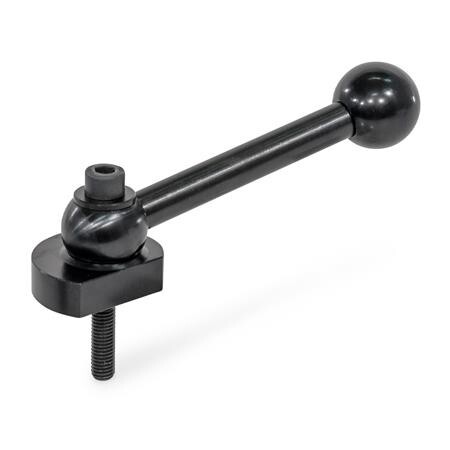

Eccentric cams GN 918 allow the rapid and secure clamping and releasing at a relatively large clamping range and with high clamping force. The cam offers the advantage that the clamping force remains constant in every angular position and is self-locking at the same time. Fastening via screw from the operator’s side bridges a larger clamping range. A sufficiently large screw-in depth t is necessary to safely absorb the screw forces. The centering step of the thrust washer provides protection from impermissible lateral forces on the socket cap screw. The ball levers of types KVS and GVS feature a positive connection with the eccentric cam by means of a serration. During assembly, the position of the lever can thus be fixed in a position that is favorable for clamping.
