Levelling foot with mounting bracket
GN 42-80-M8-40-E0-SST - Steel
Item-no.: 1399331Supplier number: 42-80-M8-40-E0-SEAN: 4045525436213
Quantity:
1 PiecePackable
Item available in 655 variants:
Price and stock visible after login
Description
Leveling feet GN 42 can be used in a host of combinations of base plates and adjustable spindle versions. The leveling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber pad protect sensitive surfaces. The leveling feet are supplied fully assembled and are not removable.
Attributes
Foot diameter d1
80
Form (foot plate)
E0 - without rubber pad, with one slotted hole
Length l1 (S/SK)
40
Material
ST - Steel
R
15
RoHS
Ja
Screw thread d2
M 8
Spindle variant
S - without nut, external hexagon at the bottom
Statische Belastbarkeit Ausführung S / SK
8 kN
Weight
0.199 kg

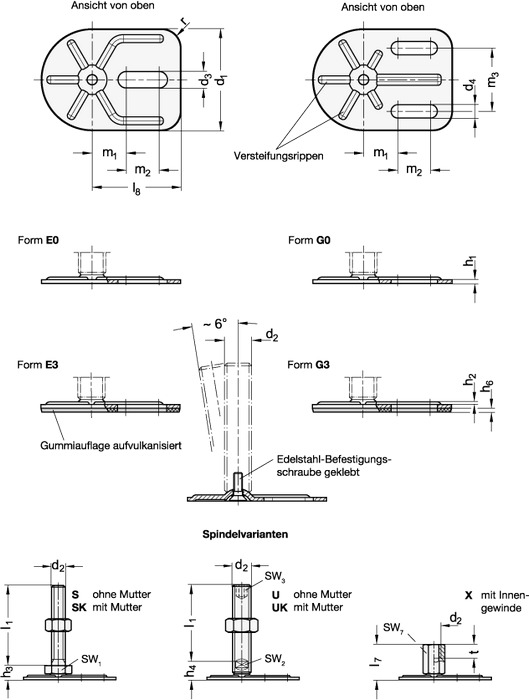

d1
80
d3
13
h1
3
h2
1.3
h3
12
l8
70
m1
27
m2
26
sw1
17
x2
M 8
