Ganter

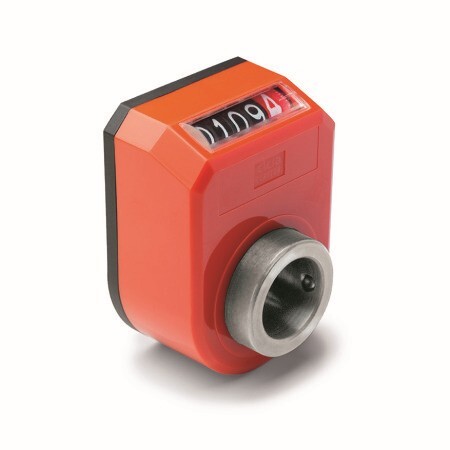

Stellungsanzeiger Edelstahl-Hohlwelle

GN 953.2-0002.5-FR-R-SG
KT - Plastic
Item-no.: 1486681Supplier number: 953.2-0002.5-FR-R-SGcustoms tariff number: 90318080EAN: 4045525769298

Quantity: ​​ 1 PiecePackable
Item available in 971 variants:
Short-term Sourcing

Description
Position indicators GN 953.2 have a direct coupled drive with digital indication. Both housing sections are ultrasonically welded, making the housing very tightly seated, stable and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal. The numbers are easily legible and they are even enlarged by the magnifying effect of the sight glass.
Attributes
Anzeigeposition
FR - straight, bottom
Colour
SG - black-grey, RAL 7021, glossy
Corresponds to thread pitch
2.5
Counter
0002.5
Display after 1 spindle revolution
25
Form
R - Numerical value increasing with clockwise rotation
Installation position
FR - straight, bottom
Material
KT - Plastic
Max. speed/min.
1000
Max. speed/min.
1000
RoHS
Ja
Weight
0.125 kg
Zählwerk (mit einer Dezimalstelle)
0002.5
