Elesa

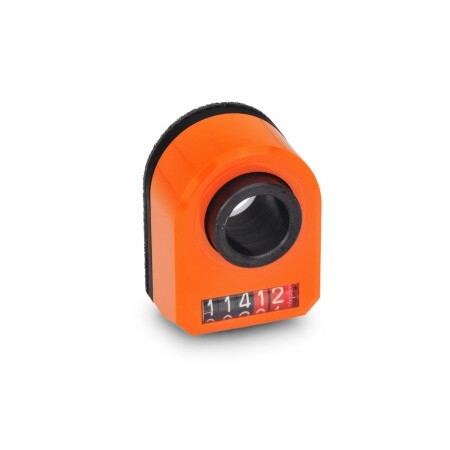

Position indicator orange

GN 953-000.50-FR-L-OR Elesa CE.83488
KT - Plastic
Item-no.: 1216390Supplier number: 953-000.50-FR-L-OREAN: 4045525660205

Quantity: ​​ 1 PiecePackable
Item available in 964 variants:
Short-term Sourcing

Description
Position indicators GN 953 have a direct coupled drive with digital indication. The two housing parts are ultra-sonically welded, thus the housing is particularly sturdy and compact. The foam rubber seal prevents the transmission of vibration to the counter and also acts as a seal. The numbers are easily legible and they are even enlarged by the magnifying effect of the sight glass.
Attributes
Anzeigeposition
FR - straight, bottom
Colour
OR - orange, RAL 2004, glossy
Corresponds to thread pitch
5
Counter
000.50
Display after 1 spindle revolution
000.50
Form
L - Numerical value increasing with anti-clockwise rotation
Installation position
FR - straight, bottom
Material
KT - Plastic
Max. speed/min.
500
Max. speed/min.
500
RoHS
Ja
Weight
0.097 kg
Zählrichtung
L - Numerical value increasing with anti-clockwise rotation
Zählwerk (mit zwei Dezimalstellen)
000.50
