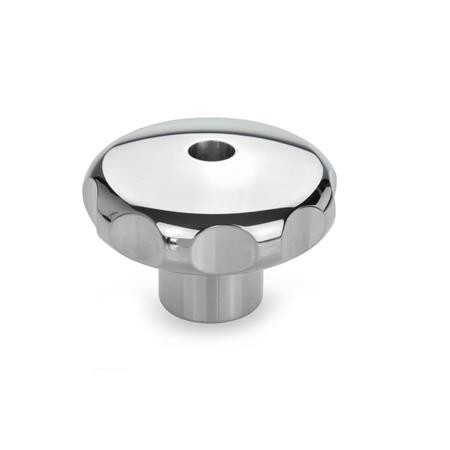

Star grip
GN 5335-40-M6-D-PL Polished stainless steelNI - Stainless steel
Item-no.: 1205143Supplier number: 5335-40-M6-D-PLEAN: 4045525730489
PU (Packaging): 15 PieceQuantity:
1 PiecePackable
Item available in 30 variants:
Price and stock visible after login
Description
Stainless steel star knobs GN 5335 are a special development intended for the food processing machinery industry. The smooth and enclosed areas as well as the large corner radii comply with the requirements of hygiene standards.
Attributes
Form
D - with threaded through-hole
Handle diameter d1
40
Material
NI - Stainless steel
RoHS
Ja
Screw thread d2
M 6
Surface
PL - highly polished
Weight
0.160 kg
d4
18
h1
30.5
h2
15
t1min.
12
t2
13
