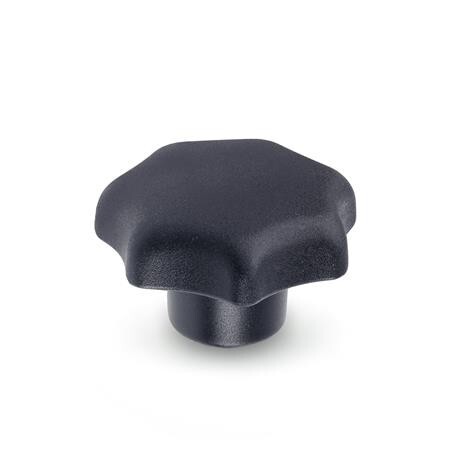

Star grip with threaded blind hole
DIN 6336-KT-50-M10-K PA black, socket steelKT - Plastic
Item-no.: 1132505Supplier number: DIN 6336-KT-50-M10-Kcustoms tariff number: 73181692EAN: 4045525335233
PU (PU NW): 25 PiecePU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 54 variants:
Price and stock visible after login
Description
Star knobs DIN 6336 with bore H7 are available under code GN 6336.1 and GN 6336.2.
Attributes
Form
K - with threaded bush
Handle diameter d1
50
Material
KT - Plastic
RoHS
Ja
Screw thread d2 (KT, Form K)
M 10
Weight
0.035 kg
d3
22
h1
32
h2
17
t1min.
18
t2
16
