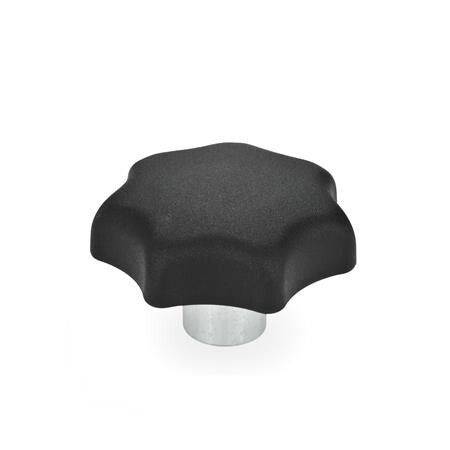

Star grip with steel bushing
GN 6336.2-50-B8-C PA black, blind hole H7PA - plastic
Item-no.: 1209697Supplier number: 6336.2-50-B8-CEAN: 4045525336865
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Star knobs GN 6336.2 with bushing have important advantages: The face of the bushing is exactly square to the bore and is with the complete diameter out of steel. The protruding steel bushing allows a perfect cross-dowels connection.
Attributes
Borehole diameter d31
B 8
Form
C - with blind hole H7
Handle diameter d1
50
Material
PA - plastic
RoHS
Ja
Weight
0.057 kg
d4
18
h1
32
h2
17
h3
10
tmin.
18
