Star grip screw with eyelet
GN 6336.13-25-M5-10-A stainless steelPA - plastic, polyamide
Item-no.: 1224158Supplier number: 6336.13-25-M5-10-AEAN: 4045525971325
Quantity:
1 PiecePackable
Item available in 57 variants:
Price and stock visible after login
Description
Star knobs GN 6336.13 can be captive-attached to a base element with the help of a ball chain or a retaining cable. The star knobs are supplied ready assembled (with retaining ring and ball chain or retaining cable).

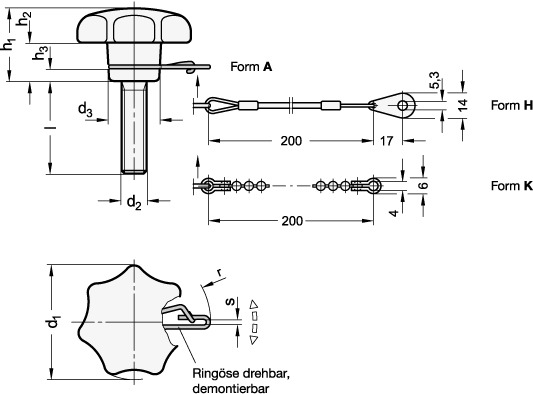

Attributes
Form
A - only with eyelet
Handle diameter d1
25
Length l
10
Material
PA - plastic, polyamide
R
21.2
RoHS
Ja
Screw thread d2
M 5
Weight
0.008 kg
d3
12
h1
16
h2
8
h3
2.5
s
2.8
