Star knob screw with captive lock
GN 5337.13-25-M5-10-PPA - plastic, polyamide
Item-no.: 1350852Supplier number: 5337.13-25-M5-10-PEAN: 4045525388444
Quantity:
1 PiecePackable
Item available in 19 variants:
Price and stock visible after login
Description

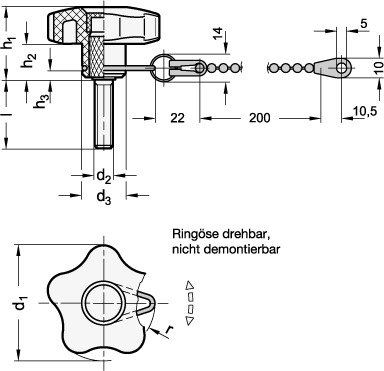

Star knobs with threaded stud GN 5337.13 can be captively attached to a base element with the help of a ball chain. The star knobs with threaded stud are supplied ready assembled (with a plastic ball chain).
Attributes
Handle diameter d1
25
Handle diameter d3
13
Length l
10
Loss prevention
P - with plastic ball chain
Material
PA - plastic, polyamide
R
20
RoHS
Ja
Screw thread d2
M 5
Weight
0.009 kg
h1
19
h2
8
h3
2.75
