Star knob screw with captive lock
GN 5337.13-40-M8-20-PPA - plastic, polyamide
Item-no.: 1350862Supplier number: 5337.13-40-M8-20-PEAN: 4045525388543
Quantity:
1 PiecePackable
Item available in 19 variants:
Price and stock visible after login
Description

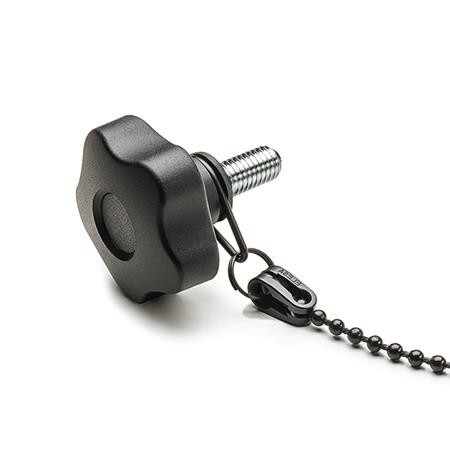

Star knobs with threaded stud GN 5337.13 can be captively attached to a base element with the help of a ball chain. The star knobs with threaded stud are supplied ready assembled (with a plastic ball chain).
Attributes
Handle diameter d1
40
Handle diameter d3
17
Length l
20
Loss prevention
P - with plastic ball chain
Material
PA - plastic, polyamide
R
21.5
RoHS
Ja
Screw thread d2
M 8
Weight
0.026 kg
h1
27
h2
12
h3
2.75
