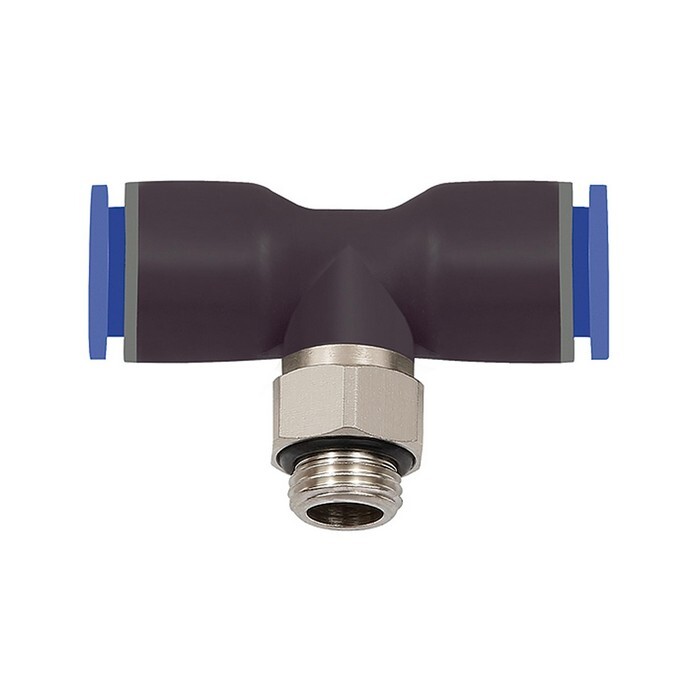

Push-in T-fitting
AG 3/8", SD12, swivelling, O-ring Blue series, KU- nickel-plated brassItem-no.: 1114234Supplier number: 131.038-12customs tariff number: 39174000EAN: 4047322025515
Quantity:
1 PiecePackable
Item available in 22 variants:
Price and stock visible after login
Description
Push-in T-fitting »Blue Series«, rotating, G 3/8 o., for hose exterior Ø 12 mm, pmax short term 15 bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
For outer hose Ø
12 mm
L1
58,6 mm
L2
27,4 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109484
SW
20 mm
Screw thread
G 3/8
Sealing material
NBR
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
Working pressure min.
-0,95 bar
