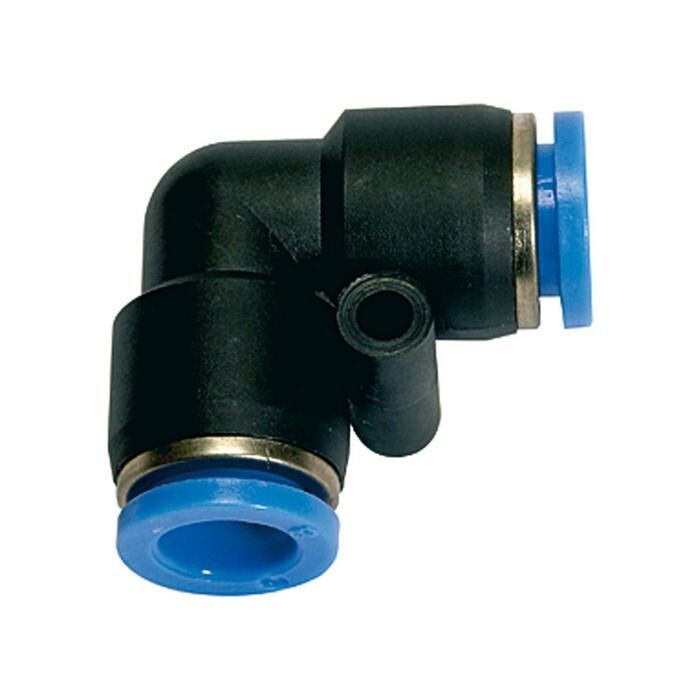

Angle connector
SD8 Blue series, KU- nickel-plated brassItem-no.: 1114323Supplier number: 137.008EAN: 4047322026260
PU (PU NW): 10 PieceQuantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
Push-in L-connector »Blue Series«, for hose exterior Ø 8 mm, pmax short term 15bar, Plastic / nickel-plated brass. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Arbeitsdruck max. kurzzeitig
15 bar
Arbeitsdruck min.
-0,95 bar
Dichtmaterial
NBR
Empfohlener Schlauch
PU oder PA (Nylon)
L1
22,4 mm
Lösering
Kunststoff
Material
Plastic or nickel-plated brass
Medium
Druckluft
Serie
Blaue Serie
Temperaturbereich max.
80 °C
Temperaturbereich min.
-20 °C
Temperature range
-20 to 80 °C
Working pressure max.
10 bar
für Schlauch-Außen-Ø
8 mm
