Travelling carriage lug shape

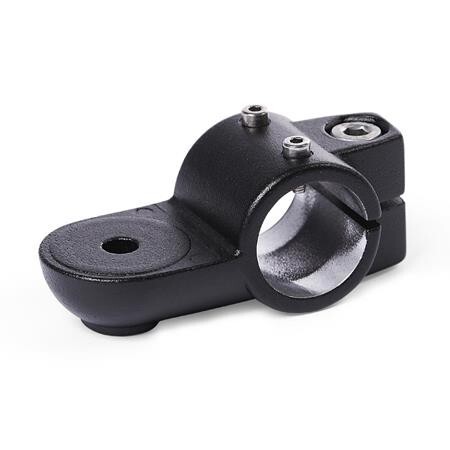

GN 278.1-B30-OZ-2-SWAL - Aluminium
Item-no.: 1487293Supplier number: 278.1-B30-OZ-2-SWcustoms tariff number: 76090000EAN: 4045525791657
Quantity:
1 PiecePackable
Item available in 24 variants:
Price and stock visible after login
Description
Swivel clamp linear actuator connectors GN 278.1 are based on swivel clamp connectors. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings. With the screw location z, the play of the guide bore d1 can be adjusted or the linear actuator connectors can be clamped after adjustment. For quick clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
Attributes
Borehole d1
B 30
Code number
2 - with stainless steel socket head cap screw ISO 4762
Form
OZ - without centring attachment (smooth)
L1
95
L2
40
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl3
63 | 78
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.145 kg
b Laschenbreite
40
d1
B - Bore
d2
8.5
d3 Befestigungsschraubeam Mitnehmer
M 4
d3 Fastening screw on driver
M 4
k Clamping length
40
m
43
s
13
t
20
z Bolting point
M8-25
z Bolting points
M8-25
