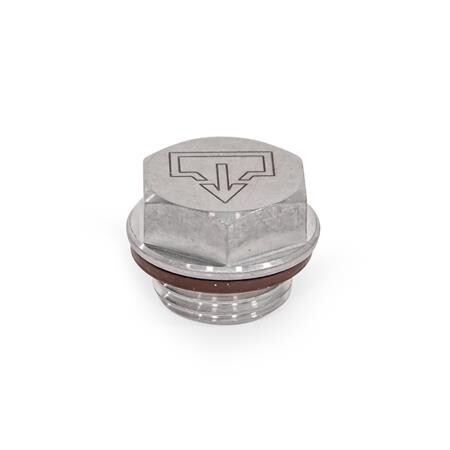

Stainless steel screw plug
GN 742.5-22-M16X1,5-A-1 with indulgence symbolA4 - Stainless steel
Item-no.: 1485943Supplier number: 742.5-22-M16X1,5-A-1customs tariff number: 73181575EAN: 4045525747357
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Threaded plugs GN 742.5 can be used in particularly aggressive environments thanks to the material used. The seal is embedded in a radial recess and thus cannot be lost, squeezed out or overloaded during tightening. The outer diameter d1 of the stainless steel threaded plugs GN 742.5 is matched to screw-in holes for pipe fittings according to DIN 3852.
Attributes
Code number
1 - without vent hole
Fine thread d2
M 16 x 1,5
Form
A - with DIN drain symbol
L1
15.5
L2
8
Material
A4 - Stainless steel
Outer diameter d1
22
RoHS
Ja
Weight
0.029 kg
d3
M 5
e
20.8
e ≈
20.8
s
18
t
8
