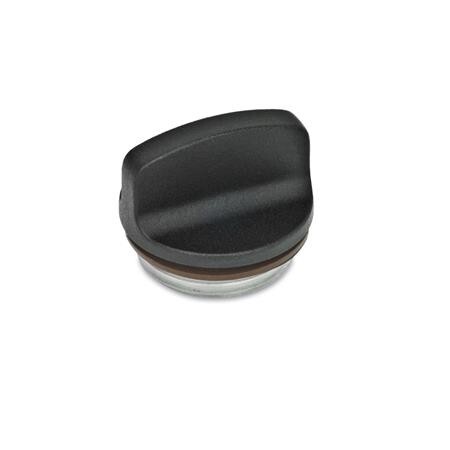

Screw plug, black
GN 442-22-M16X1,5-1-SWAL - Aluminium
Item-no.: 1203002Supplier number: 442-22-M16X1,5-1-SWEAN: 4045525600034
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 28 variants:
Price and stock visible after login
Description
Threaded plugs GN 442 with the external diameter d1 match the screw-in holes for DIN 3852 pipe bolt connections. The sealing ring is embedded in a radial recess on the plane side, which makes the seal captive and cannot be squeezed out during tightening.
Attributes
Colour
SW - black, RAL 9005, textured matt
Fine thread d22
M 16 x 1,5
L1
26
L2
8
Material
AL - Aluminium
Outer diameter d1
22
RoHS
Ja
Vent hole
1 - without vent hole
Weight
0.011 kg
d3 Entlüftungsbohrung
2
d4
M 5
l3
15
s
5
tmin.
8
