Cube connector
GN 33B-454510-3-C-ABSZSItem-no.: 1662033Supplier number: 33B-454510-3-C-ABSZScustoms tariff number: 76169990EAN: 4045525930544
Quantity:
1 PiecePackable
Price and stock visible after login
Description

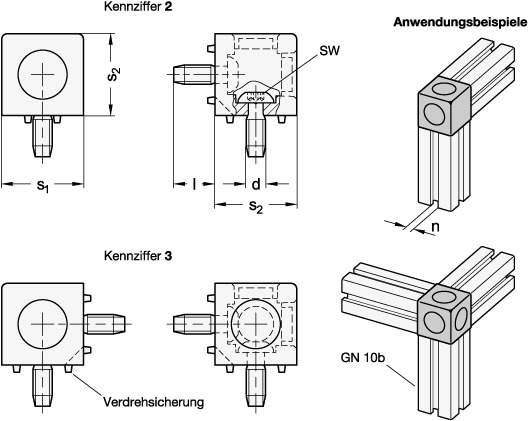

Cube connectors GN 33b fasten two or three aluminum profiles together on their end faces, at right angles and with anti-twist protection. Machining of the profile is not necessary. The self-forming thread of the screws should be lubricated to facilitate assembly. The end faces of the aluminum profiles are covered by the cube connectors, which ensures a visually appealing appearance. If panels are used in the slot, they must be given a suitable corner chamfer.
Attributes
Breite s1
45
Code number
3 - Connection of 3 profiles
Farbe der Abdeckkappen
S - black
Form
C - with fixing set
Groove width n
10
Höhe s2
45
Length l
24
Length l ≈ Length l
24
RoHS
Ja
SW
T50
Tightening torque
35 Nm
Tightening torque in Nm
35
Weight
0.161 kg
Werkstoff / Oberfläche (Gehäuse)
AB - Aluminium, bright
Werkstoff / Oberfläche (Schrauben)
SZ - Steel, galvanised, blue passivated
dGewindeselbstformend
S 12
