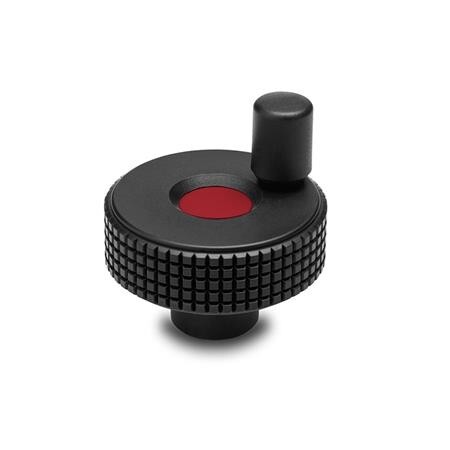

Feed wheel, cover cap red
GN 735-70-B10-D-DRTPP - plastic
Item-no.: 1483271Supplier number: 735-70-B10-D-DRTEAN: 4045525638037
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Control handwheels GN 735 are used for setting operations with low torque. Coarse setting is made by means of the cylindrical handle (fingertip grip) followed by fine setting using the knurled rim of the handwheel.
Attributes
Borehole d2
B 10
Borehole filtercolumn
10
Colour cover cap
DRT - red, RAL 3000, matt
Form
D - with rotating knob
Handwheel diameter d1
70
L1
42
L2
25
Material
PP - plastic
R
25
RoHS
Ja
Weight
0.088 kg
b
21.5
d3
24
d4
M 5
d5
16
l3
23
l4
6
