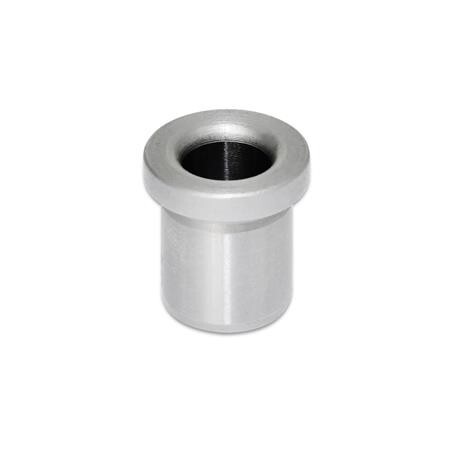

Geflensde boorbus DIN 172 A
12,4x22/26x36 mm, dikte kraag 4 mm lang, 1.0718 gecarbonitreerd, HRC 62±2ST - Staal
Art.-Nr.: 1402053EAN: 4045525501102
VPE (Verpakking): 10 stukAantal:
1 stukPakketgeschikt
Artikel in 47 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Guide bushings DIN 172 are characterized by the tight dimensional and positional tolerances in connection with the hardened and finely machined surface. As a result, they are suitable for extremely universal use in many applications. Holes with tolerance H7 are recommended for installing the bushings. In connection with the outer diameter of the bushing with a tolerance of n6, use of a transition adapter is recommended. For guide applications, combination with the guide pins GN 771.1 is recommended.
Specificaties
... ,1
B 12,1
... ,2
B 12,2
... ,3
B 12,3
... ,4
B 12,4
... ,5
B 12,5
... ,6
B 12,6
... ,7
B 12,7
... ,8
B 12,8
... ,9
B 12,9
Diameter d
B 12,4
Gewicht
0.078 kg
L2
4
Lengte l1
36
Materiaal
ST - Staal
RoHS
Ja
Vorm
A - Gat aan één kant afgerond
d2
22
d3
26
