Roterende stelschroef compleet
GN 900.6-55 voor montageplaten/glijdersNI - Roestvrij staal
Art.-Nr.: 1214436Leveranciersnummer: 900.6-55EAN: 4045525511699
Aantal:
1 stukPakketgeschikt
Artikel in 2 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving

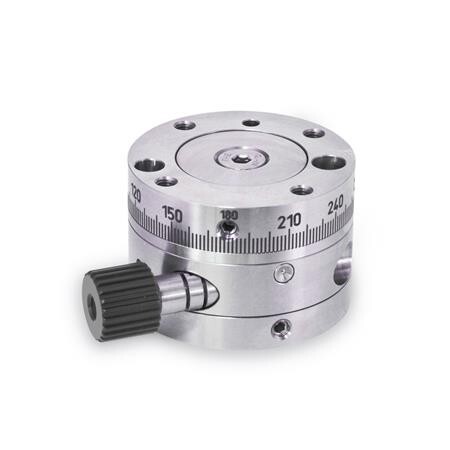

Rotary tables GN 900.6 is a turning unit for manual operation. To get the turning movement we use a high quality worm gear. The rotary table is also fitted with a fastadjustment and for this purpose a grub screw on the side of the rotary disk has to be released. In addition the rotary disk can also be clamped via an easily accessible grub screw. In both cases internal conically shaped arresting components come into use.
Specificaties

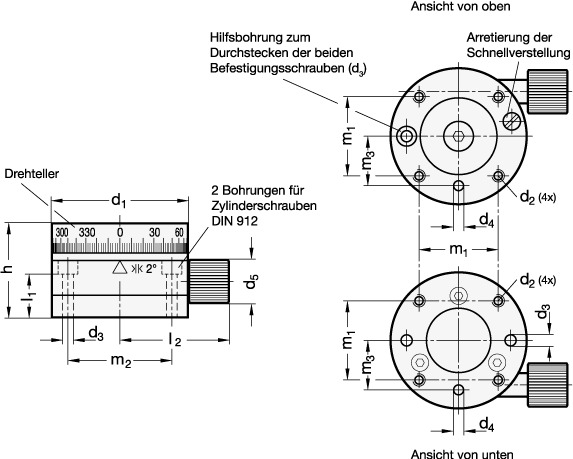

Diameter d
55
Gewicht
0.662 kg
L2
44
Lengte (batterij)
17.5
Materiaal
NI - Roestvrij staal
RoHS
Ja
d2 Gewinde - Tiefe
M 5 - 8
d3 für ZylinderschraubenDIN 912
4.3
d4 Boordiepte
4 - 10
d5
17
geeignet fürMontageplatten GN 900.4Größe
GN_900.4-50
h
38
m1
32
m2
42
m3
20
x1
M 4
