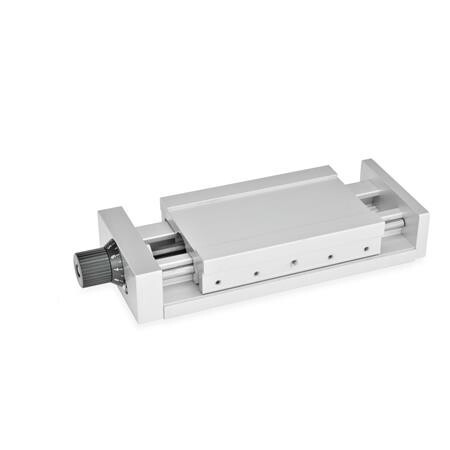

Regelschuif met draaiknop

GN 900-30-50-5-D-1 Spanhendel
AL - Aluminium
Art.-Nr.: 1214492Leveranciersnummer: 900-30-50-5-D-1EAN: 4045525508569

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 168 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations. These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way. For fine adjustment there is a scale ring graduated in increments of 0,05 mm, with digital position indicator 0,02 mm.
Specificaties
Breedte B
30
Codenummer
1 - zonder spanhendel
Gewicht
0.089 kg
Materiaal
AL - Aluminium
RoHS
Ja
Vorm
D - met draaiknop
d1
M4 x 0,5
d2
M 3
d3
14
h1
9.3
h2
16
h3
17
h4
4
h5
3
l1 - l2
50-5
l3
45
l4
4
l5
6
l6
20
s
16
t
1
