Aansluiting met klembeugel

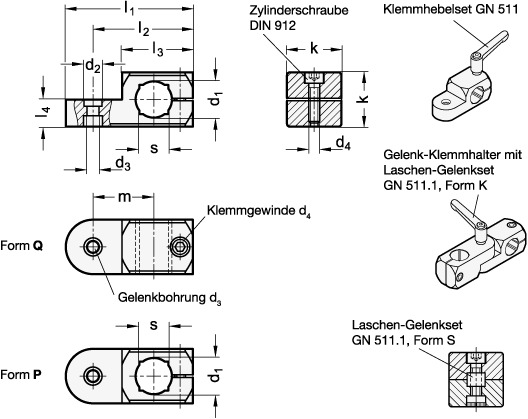

Swivel mounting clamps GN 482 can be combined with T-swivel mounting clamps GN 483, attachment swivel mounting clamps GN 484 as well as base plate swivel mounting clamps GN 485 with the same k dimensions to swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and with adjustable hand lever (type K) are available for this purpose. In addition, the clamping screw d4, which is a socket cap screw with hexagonal socket DIN 912 in the standard design, can be replaced by a clamping kit GN 511. The article code for ordering is shown in the dimensional table.
