Producten
Ganter

Ratelspanner

GN 316-12-V8 vierkant
Art.-Nr.: 1196208Leveranciersnummer: 316-12-V8douanetariefnummer: 82042000EAN: 4045525541955

Aantal: ​​ 1 stukPakketgeschikt
Artikel in 17 varianten beschikbaar:
Op korte termijn verkrijgbaar

Beschrijving
Ratchet spanners GN 316 are robust, easy to handle and have an appropriate and attractive design. Ratchet spanners are normally used wherever the same ratchet insert is always required or where it makes sense to leave the ratchet spanner at the place of use or attach it to equipment or machinery as a "stationary" tool. Various different versions of ratchet insert are available and these can be exchanged as required by loosening the retaining screw and removing the cover plate. The ratchet action is deactivated when the reversing lever is in the locked position (central position), allowing torque to be applied in both directions.

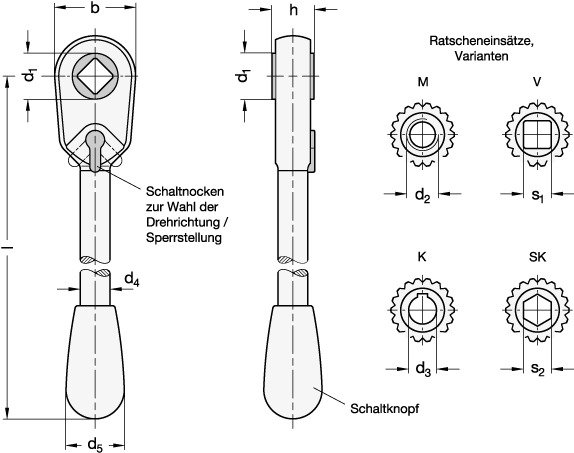

Specificaties
Aansluiting vierkant s1
V 8
Anschlussvierkant s1
V 8
Diameter inzetstuk d1
12
Gewicht
0.087 kg
L
118
Lengte l
118
Materiaal handvat
ST - Staal
RoHS
Ja
Vorm
V - met vierkant
b
22
d4
9
d5
20
h
11
max. zul.Drehmomentin Nm
40
