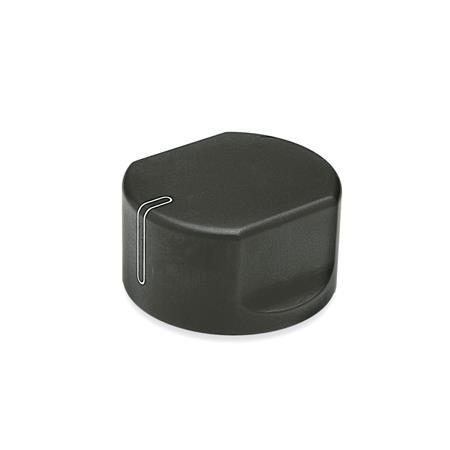

Schakelknop
GN 729-34-B6 Zwart geanodiseerd aluminiumAL - Aluminium
Art.-Nr.: 1212286Leveranciersnummer: 729-34-B6EAN: 4045525364097
Aantal:
1 stukPakketgeschikt
Artikel in 4 varianten beschikbaar:
Prijs en voorraad zichtbaar na login
Beschrijving
Control knobs GN 729 are usually selected for applications which require a limited movement within 180°. With the aid of limiting pins which protrude into the circular groove the angle of rotation can be restricted. The bore d4 is for a spring plunger GN 614 to act as a simple detent. The indexing line is indelible and visible from two sides.
Specificaties
Boring d2
B 6
Buitendiameter d1
34
Gewicht
0.043 kg
L1
20
L2
7.5
Materiaal
AL - Aluminium
RoHS
Ja
b
28
d3
M 5
d4
6
d5
20
s
4
t1min.
14
t2
4
